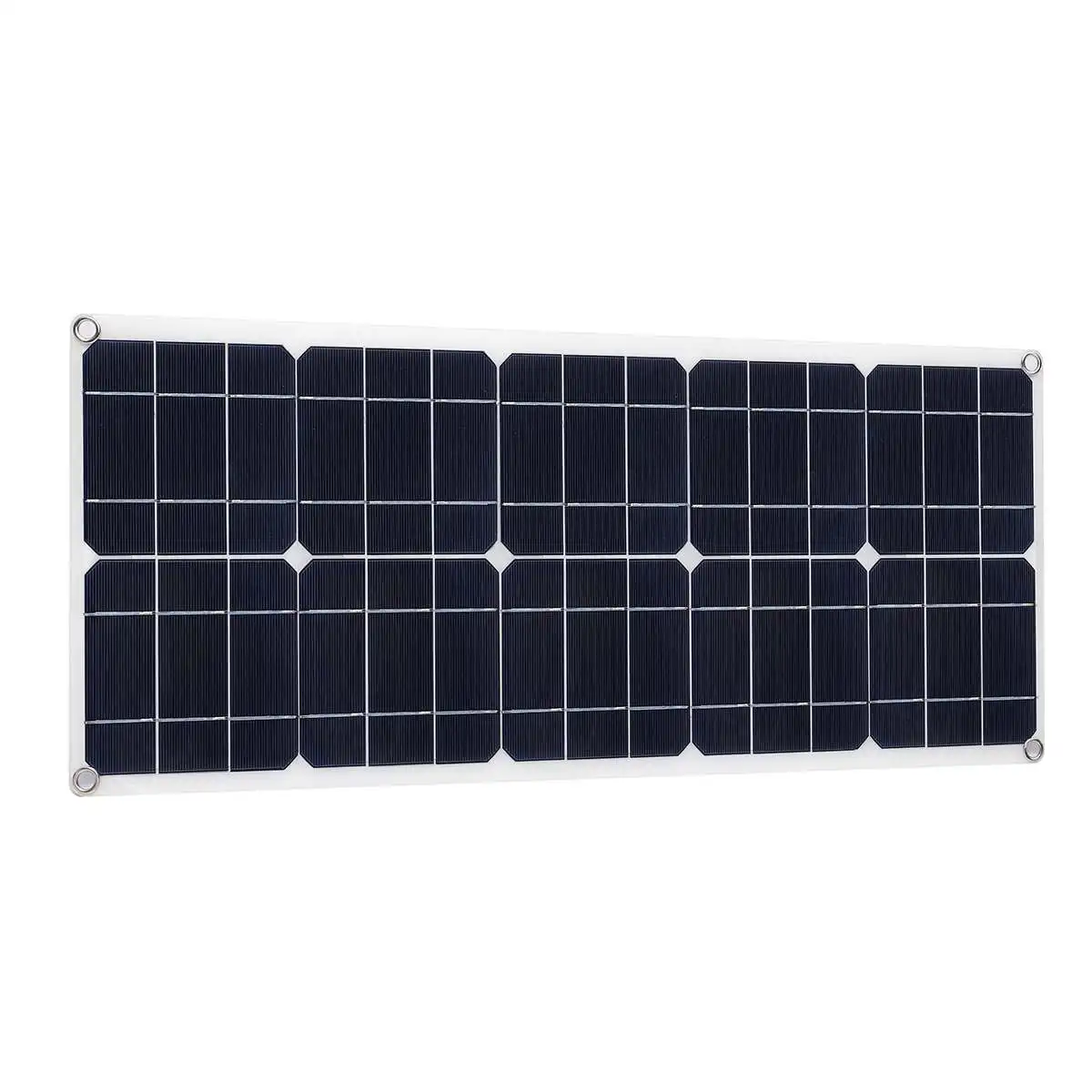

100W 18V Monocrystaline Solar Panel Dual 12V/5V DC USB Charger Kit with 10A Solar Controller & Cables for Outdoor
100W 18V Mono Solar Panel Dual 12V/5V DC USB Monocrystaline Flexible Solar Charger For Car RV Boat Battery Charger
EVA+PET at front panel, light-weight but durable.
USB and DC output interface for more purpose.
1.Equipped with 12V DC5.5x2.1 & 5V USB output interface.
2.Dedicated for 12V battery and 5V device charging.
3.High output 3000mAh USB, can full-charge an iX in 1.5h in max power.
4.Mono-crystalline solar Cell with efficient up to 21%.

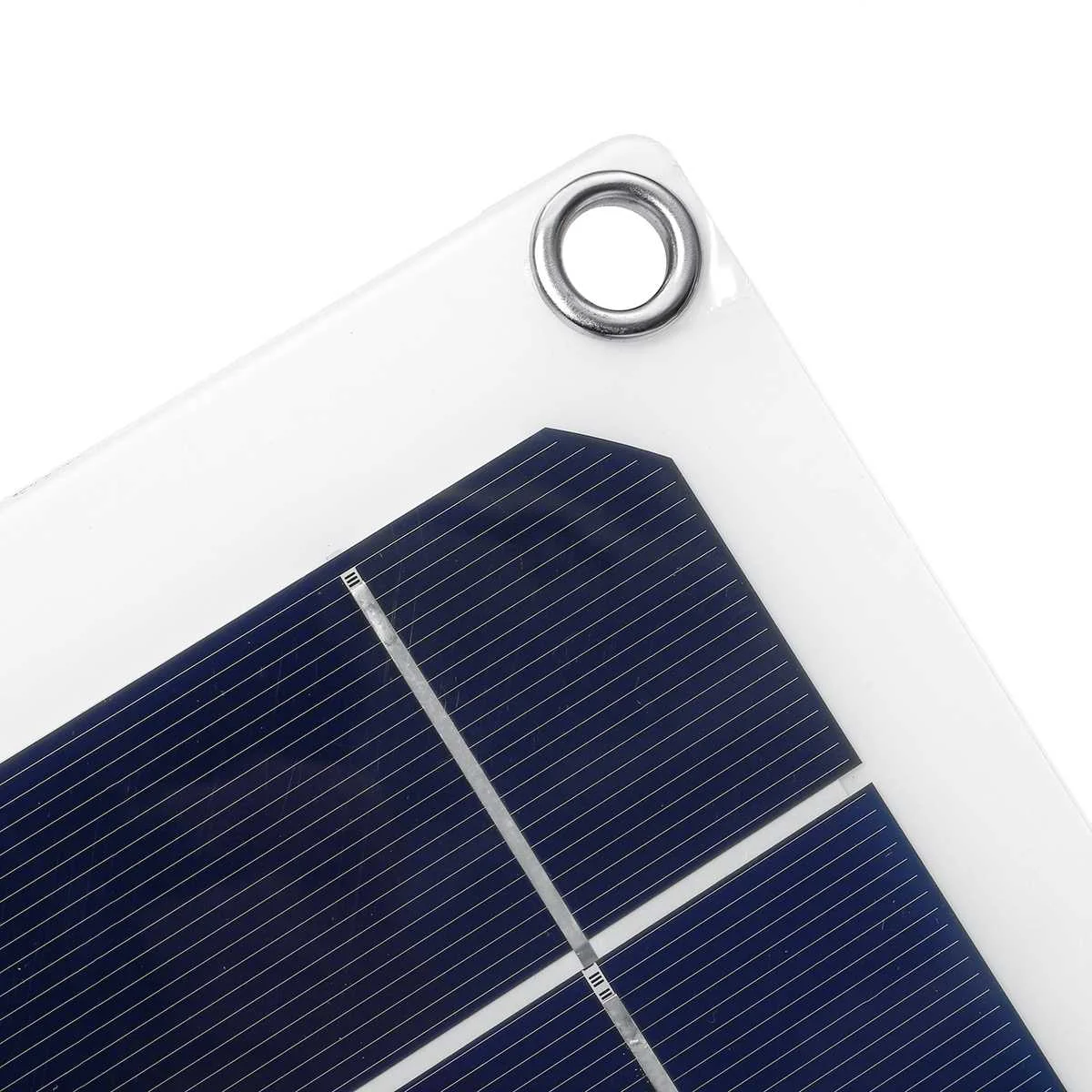

5.4x eyelet and free 2x carabiners for mounting more conveniently.
6.IP65 waterproof, suitable for outdoor using in light rain.
Specification for the Panel:
Max USB Regulator Output: 5V 3000mA & 2400mA
Max DC5.5x2.1 Regulator Output: 12V 2000ma
Material: EVA + PET
Size of Panel: 660x280x2.5mm
Size of Package: 680x280x35mm
Length of DC Output Cable: 110mm
Net Weight: 650G
About the Controller:
1.It comes with a controller which is good for protecting the battery.
2.The controller is 12V & 24V adaptive.
3.Usually a 10A controller is enough for this panel coz the Ipmax is about 2.0A, if you wanna use the controller in other higher-powered solar system, you can choose 20A or 30A, too.
1.It can be used as an alternative charger for cars, trucks, caravans, boats, motorcycles, RV batteries or any 12V lead-acid batteries.
2.Also for emergency lights, advertising lights, traffic lights, electric fans, solar pumps that`re equipped with a DC or USB interface.
1.Insert USB cable for standard 5V output to charge 5V device.
2.Connect DC alligator clip for standard 12V battery.
3.Connect DC cigarette lighter plug clip for car battery charging.
4.Note! DO NOT have the positive and negative anodes of the Alligator clip to touch or connect to each other, or it will cause short circuit and burning.

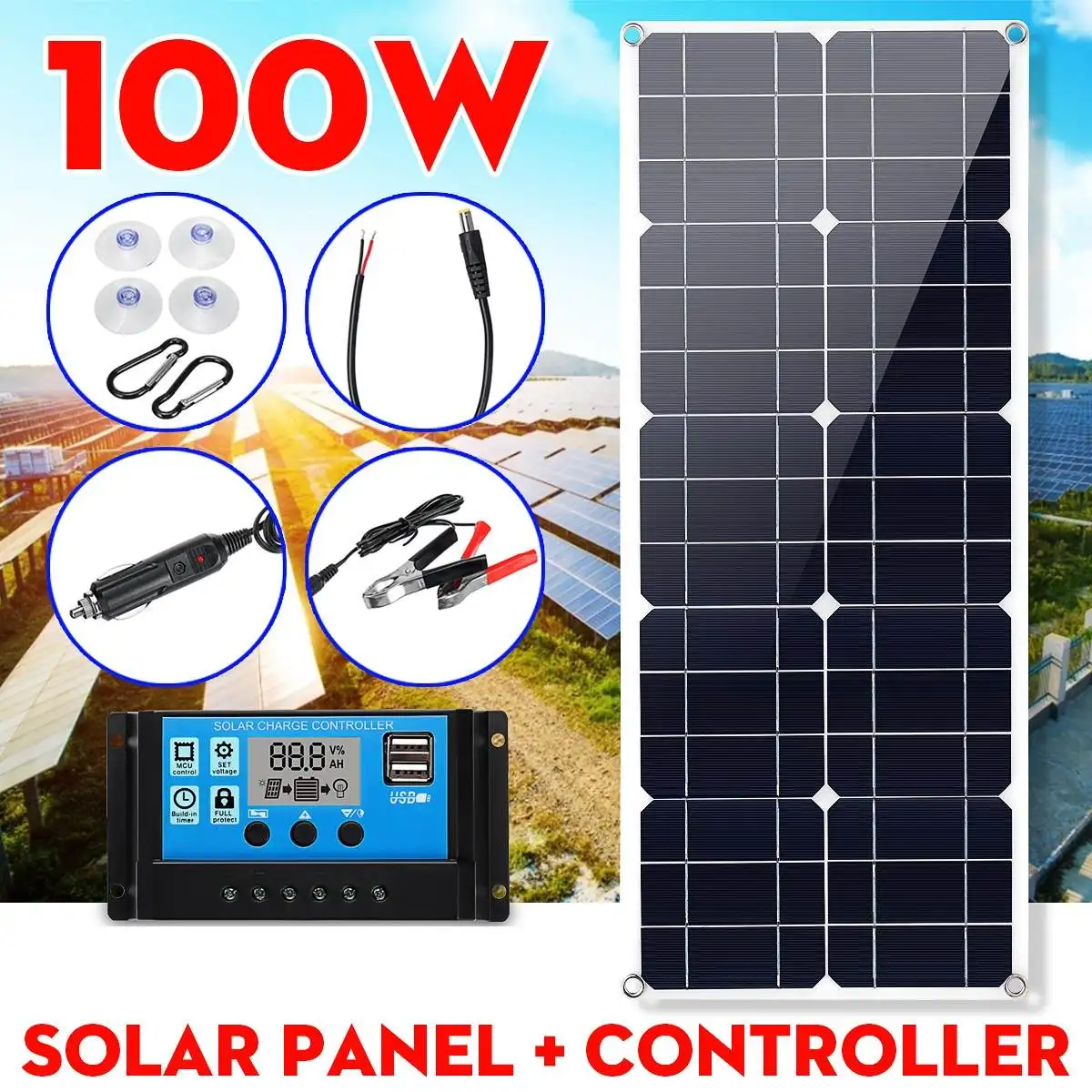

1x 100W Panel
1x 12V Alligator Clip Power Cable
1x 12V Cigarette Lighter Plug Power Cable
1x 10A Solar Controller
2x DC Adapter Cable
The Junction Box of this panel is mounted on the Back! So it`s not suitable to be glued on the roof of the vehicle.
1.Keep it away from strong corrosive objects!
2.Don`t have hard objects scratch the surface!
3.Don`t bend it over 10° though it`s flexible coz it`s small size!
4.Don`t try to refit the circuit of the without authorization coz it`s not a DIY panel, or it may cause the product damage!Please do not
5.Don`t place the junction box side under heavy rain coz it`s only IP65 waterproof!
